RFID Case Study: Enhancing retail transfer accuracy with RFID box validation

Contact us

In retail environments, time, space and accuracy are critical, especially in back-of-store operations. Retailers must process store-to-warehouse devolutions and store-to-store transfers efficiently, while working within constrained environments. Traditional validation approaches, however, often fail to deliver the required speed and accuracy. To address this, Clustag implemented a Box Validation solution powered by RFID Shield Technology, enabling fast and reliable validation of full boxes in a controlled environment.

Challenge

Retailers face significant challenges when validating boxes for transfer in busy store environments. Traditional validation approaches create multiple problems:

  • Manual or barcode-based checks are slow and require item by item handling
  • Errors are detected too late, once boxes arrive at the destination
  • Open RFID environments cause stray readings from nearby tagged items
  • Backstores lack space for complex or large RFID infrastructures

The challenge was to deploy a compact solution, suitable for the backstore, that could validate full boxes quickly and accurately, operating in an enclosed environment to completely avoid stray readings.

In daily retail operations, stores prepare boxes containing multiple RFID tagged items for store to warehouse devolutions (returns, excess stock, seasonal items) and store to store transfers (inventory balancing across locations). Before implementation, validation relied on manual counting or barcode scans, increasing handling time and limiting accuracy. Inventory discrepancies, transfer claims, and reconciliation processes at the warehouse or receiving store were common.

Retailers needed a solution capable of delivering distribution center level accuracy directly at store level, without adding complexity for store associates.

Solution

To address these challenges, the retailer implemented a Box Validation RFID solution powered by Clustag's RFID Shield Technology, specifically designed for dense retail environments. The device incorporates advanced RFID Shield Technology, which creates a fully enclosed and controlled RF reading environment. By blocking external RFID signals, the system eliminates stray readings, ensuring that:

  • Only the items inside the box are read
  • Surrounding merchandise is completely ignored
  • 0% unwanted or stray reads are generated

The implementation included the following components:

  • Clustag's RFID Shield Technology ensuring a fully enclosed reading environment
  • Times-7 A9044M Packing Station Antenna (veRFID!)
  • RAIN RFID reader
  • Label printer for on-the-spot shipment and return labels

The system provides instant on screen validation, minimizing training needs for store associates. The solution is compact enough to fit naturally in the backstore while maintaining high accuracy item level validation.



Implementation

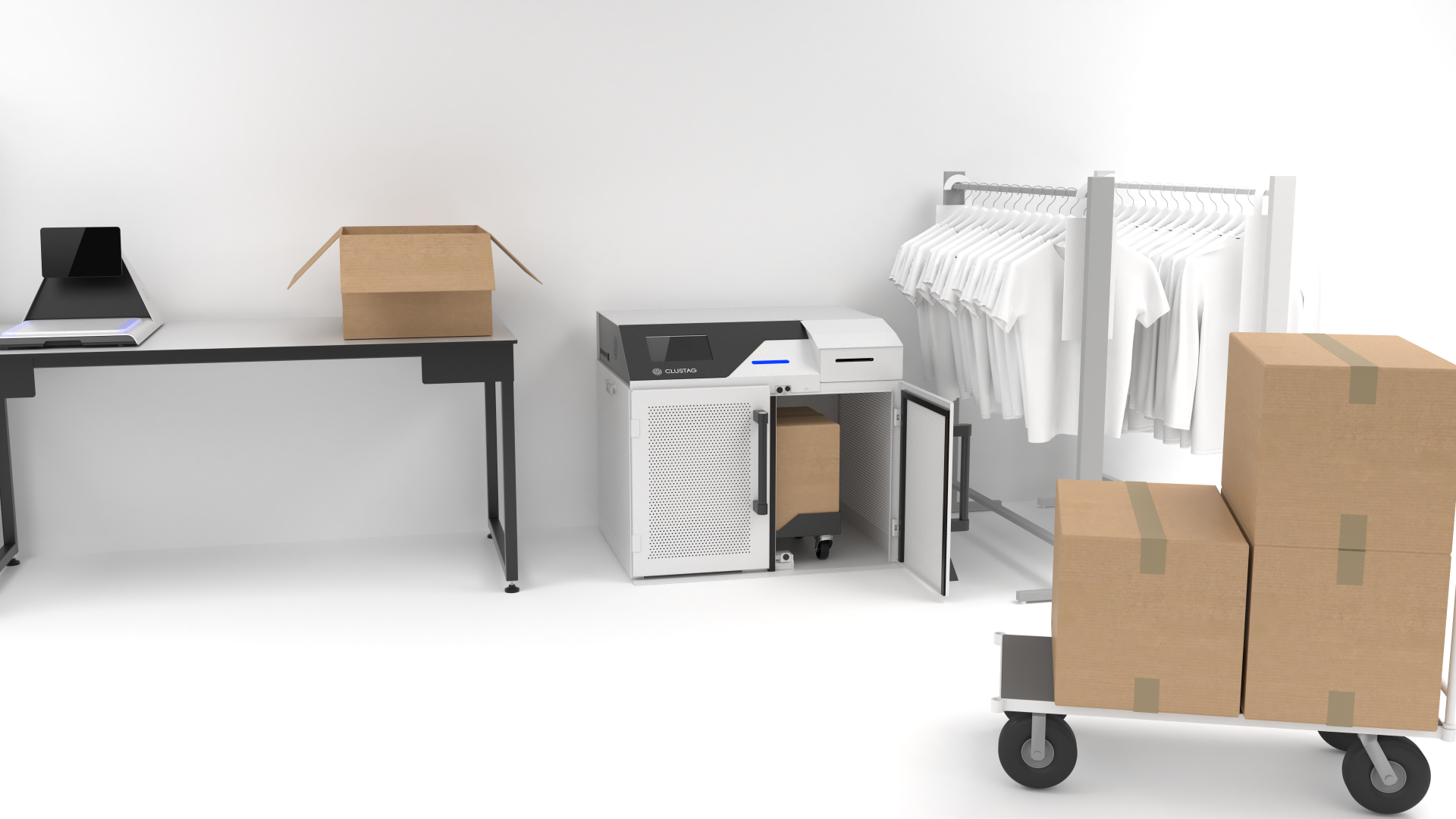

The retailer deployed the Box Validation unit directly in the backstore. The workflow is straightforward

  1. The store associate places the transfer or returns box into the Box Validation unit
  2. All RFID‑tagged items inside the box are read simultaneously
  3. The EPC list is automatically compared with the expected transfer order
  4. Validation results are displayed instantly on screen
  5. A shipping or transfer label is printed on the spot (optional)

The entire process takes seconds, without unpacking boxes or scanning items individually.

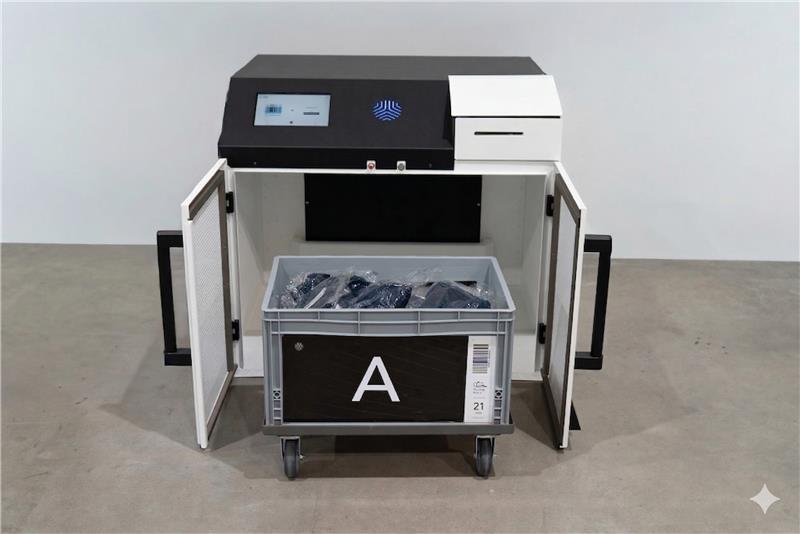

Built for Demanding Retail Workflows

The Box Validation unit is designed for accuracy and consistent performance in busy retail backstores. It supports the full transfer lifecycle:

  • Store to warehouse transfer: Boxes are validated before being shipped to the warehouse
  • Store to store transfer: Items are confirmed against the transfer order at the origin store

The unit acts as the first quality checkpoint before a box leaves the store. It delivers accurate reads and flags discrepancies instantly, so they can be resolved on the spot — not at the destination.

Results

After deploying Box Validation, retailers achieved measurable operational improvements:

  • Faster store to warehouse devolutions, validated before shipment
  • Accurate store to store transfers, with trusted item level data
  • Errors detected at the origin store, not downstream
  • Significant reduction in claims, investigations, and rework
  • Improved trust in inbound inventory data at the warehouse

Transfers became faster, cleaner, and fully traceable across the retail network. These results confirm that RFID systems, when properly deployed in enclosed environments, can be a critical enabler of accurate and traceable retail logistics processes, even directly at store level.

Conclusion

Clustag's Box Validation solution, powered by RFID Shield Technology, delivers distribution center level accuracy directly in the store. With hardware validated by Cisper Electronics, the solution transformed manual transfer validation into a streamlined, fully traceable process with measurable results. Already adopted by leading global retailers in apparel, fashion and watchmaking, the solution proves its reliability and scalability in demanding retail environments.

Used Cisper products:
