Description
The Chainway C66 with UHF Back Clip combines rugged mobile computing with powerful long-range RFID performance. Designed for logistics, warehousing, manufacturing and other data-intensive environments, this versatile handheld makes it possible to capture RFID, barcode and NFC data with a single mobile solution.

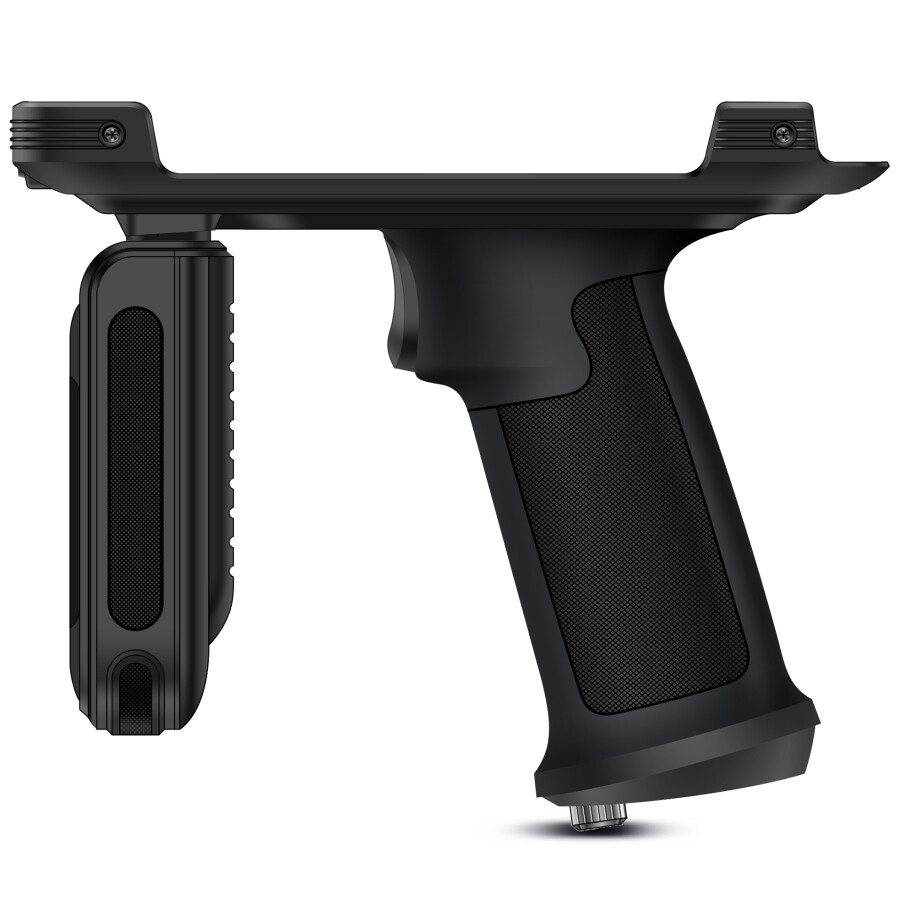

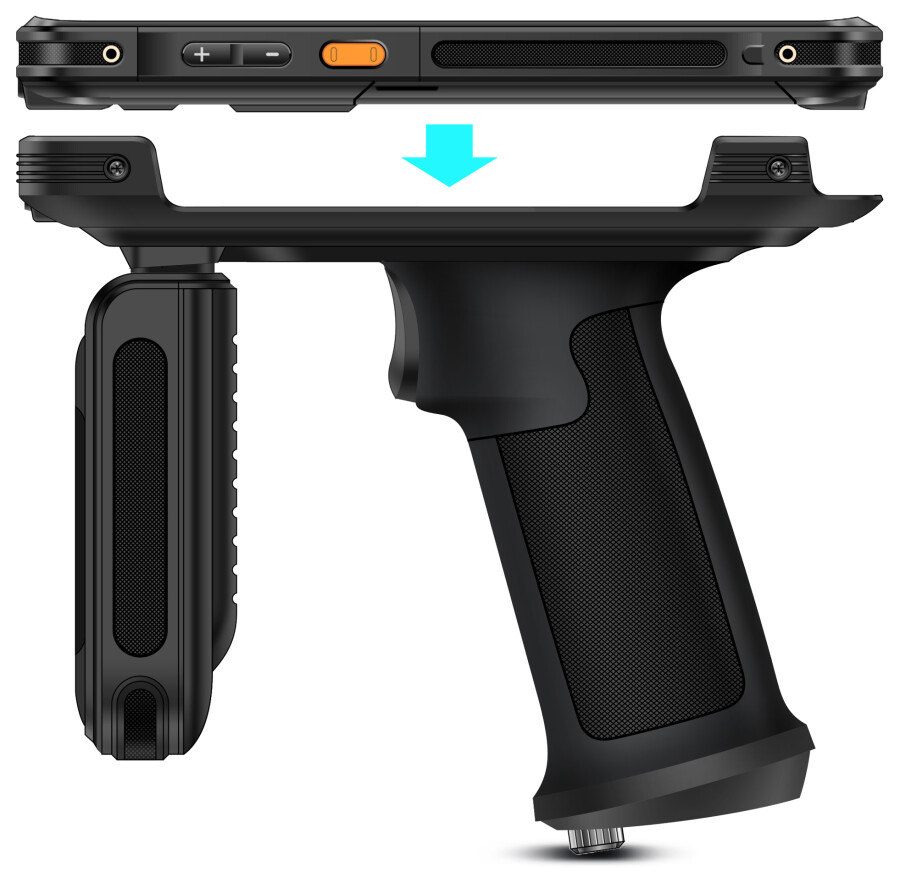

The optional UHF Back Clip is powered by an Impinj E710-based module and features a 4 dBi circularly polarized antenna. Depending on the RFID tag, the datasheet specifies maximum read ranges of up to 32 metres and a read rate of more than 1,300 tags per second. This makes the C66 particularly suitable for fast inventory checks and asset identification across larger areas.
The C66 runs Android 11 or 13 and features a 5.5-inch HD touchscreen, octa-core processor, Bluetooth 5.1, dual-band Wi-Fi, cellular connectivity and GNSS. Its rugged IP65-rated design is built for intensive daily use.
Key features
-
Optional UHF RFID Back Clip
-
Impinj E710-based UHF module
-
EPC C1 GEN2 / ISO18000-6C
-
4 dBi circularly polarized antenna
-
Maximum read range up to 32 m, depending on tag
-
Read rate of 1300+ tags/sec
-
Android 11 or Android 13
-
Optional 1D/2D barcode scanning
-
NFC at 13.56 MHz
-
Bluetooth 5.1 and dual-band Wi-Fi
-
IP65 protection, IP67 optional
-
Removable battery
