Description
The Times-7 Portal is designed for accurate pallet, carton and item-level RAIN RFID tracking in warehouses, distribution centres and dock door environments. Its high-gain circularly polarised antenna creates a focused 50° horizontal beam, helping keep the read zone concentrated on the target lane and reducing unwanted cross-reads from surrounding areas.

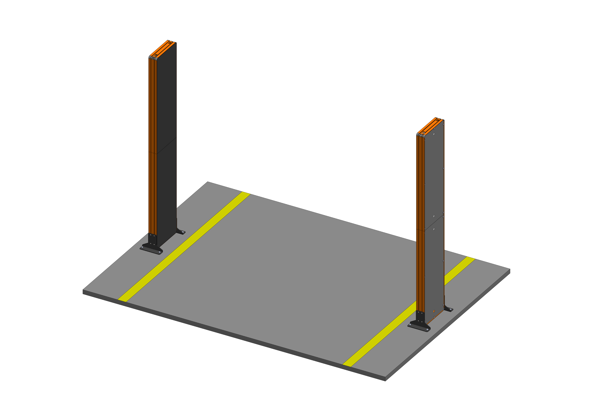

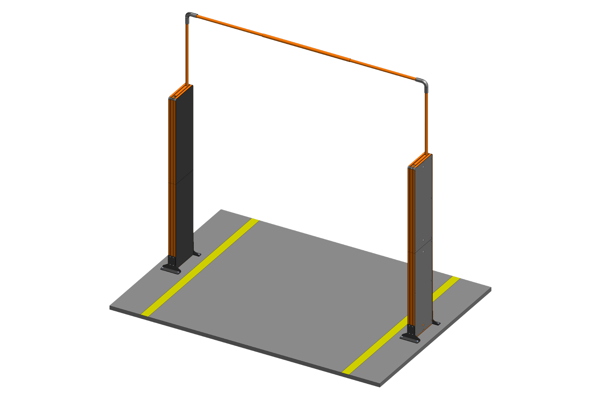

Available as Portal System, Portal Tower and Portal Base, the platform can be adapted to different pallet heights, portal widths and product types. Its reader-agnostic design also allows integration with standard RAIN RFID readers.
Key features include:
-
865–868 MHz ETSI and 902–928 MHz FCC versions
-
50° horizontal beamwidth
-
Right-hand circular polarisation
-
IP54 environmental rating
-
Operating temperature from -20°C to +55°C
-
Modular configurations for different installation requirements
-
Suitable for pallet, carton and item-level tracking
The Times-7 Portal is particularly suited to warehouse receiving and dispatch, distribution centres, 3PL facilities, retail back-of-house environments and grocery or beverage distribution
