Description

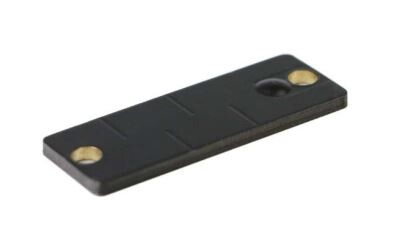

Built for RFID tracking where extreme heat and metal surfaces are part of the process. The Xerafy MICRO Heat is a compact UHF RFID tag designed for demanding industrial environments, including high-temperature production, work-in-process tracking and RTI management.
Its high-temperature polymer construction allows the tag to withstand survival temperatures up to 215°C for 48 hours, while the IP68 rating provides protection in challenging environments. Despite its compact 42 × 15 mm format, the MICRO Heat offers strong read performance on metal, reaching up to 8 metres in the US version and 7 metres in the EU version.
Powered by the NXP UCODE 8 chip, the tag supports EPC Class 1 Gen 2 and ISO18000-6C and provides 128 bits EPC and 96 bits TID memory.
Key features:
-
NXP UCODE 8 RFID chip
-
Up to 8 m read range on metal
-
IP68 rated
-
Survival temperature up to 215°C for 48 hours
-
Compact 42 × 15 mm design
-
Mounting with screws, cable ties or industrial adhesive
-
US and EU frequency versions available
